Fine Fluorides
Magnesium Fluoride :
MgF2
Powder for Optical Materials
MPIL high purity MgF2 powder is suitable for optics applications.
MgF2 is extremely transparent over a broad range of wavelengths – from VUV to IR, its uniqueness being its ability to transmit over VUV (Vacuum Ultraviolet Range). Lenses, prisms and windows made from MgF2 are physically very tough. Thin layers of MgF2 are also used to coat surfaces of optical elements as an anti-reflective coating.
Some important end uses of MgF2 are:
- Anti-reflective coatings
- UV optics
- Excimer lasers

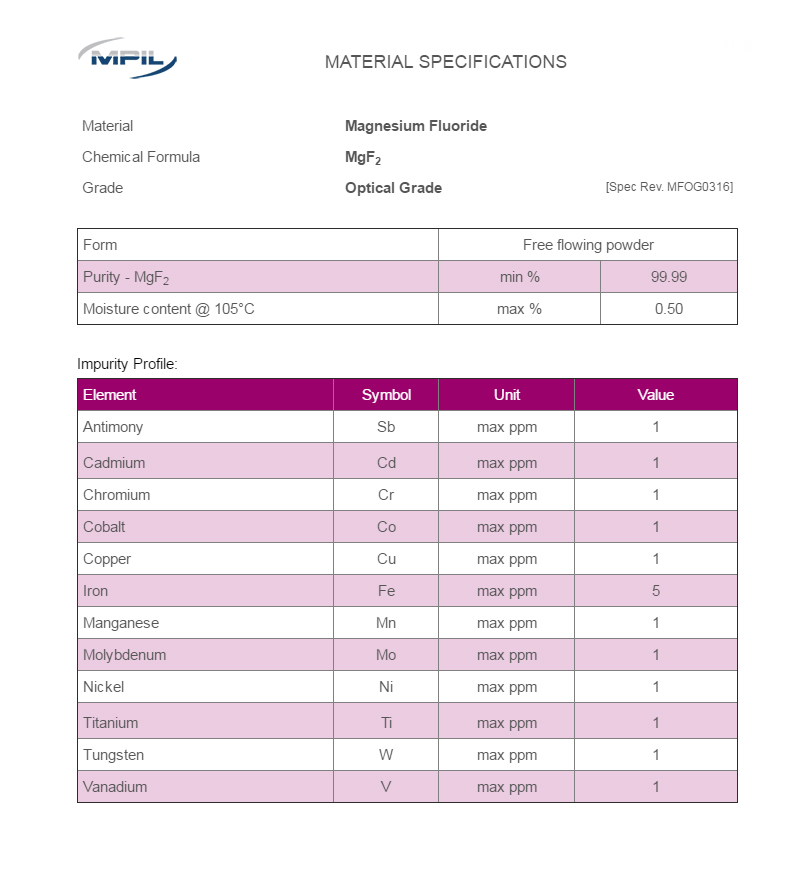

MATERIAL SPECIFICATIONS
| Material | Magnesium Fluoride | ||
| Chemical Formula | MgF2 | ||
| Grade | Optical Grade | [Spec Rev. MFOG0316] | |
| Form | Free flowing powder | ||
| Purity - MgF2 | min % | 99.99 | |
| Moisture content @ 105°C | max % | 0.50 | |
| Element | Symbol | Unit | Value |
| Antimony | Sb | max ppm | 1 |
| Cadmium | Cd | max ppm | 1 |
| Chromium | Cr | max ppm | 1 |
| Cobalt | Co | max ppm | 1 |
| Copper | Cu | max ppm | 1 |
| Iron | Fe | max ppm | 5 |
| Manganese | Mn | max ppm | 1 |
| Molybdenum | Mo | max ppm | 1 |
| Nickel | Ni | max ppm | 1 |
| Titanium | Ti | max ppm | 1 |
| Tungsten | W | max ppm | 1 |
| Vanadium | V | max ppm | 1 |
